DIN985
Goshen
GSHN001

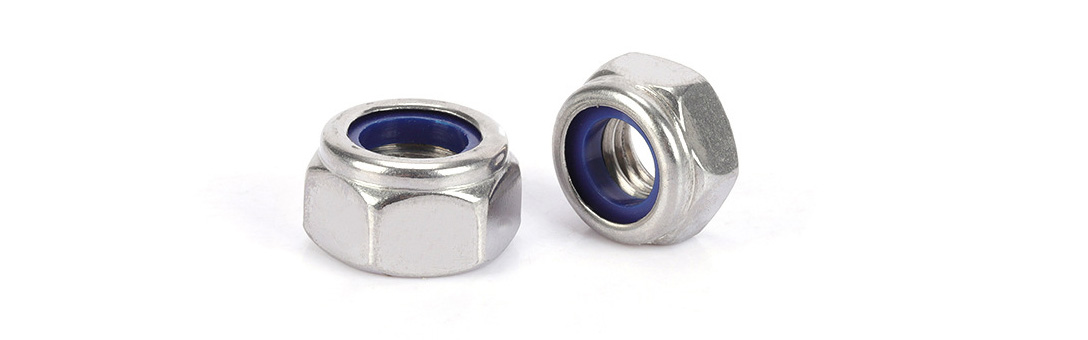

Sechskant-Kontermutter aus Nylon
Spezifikation

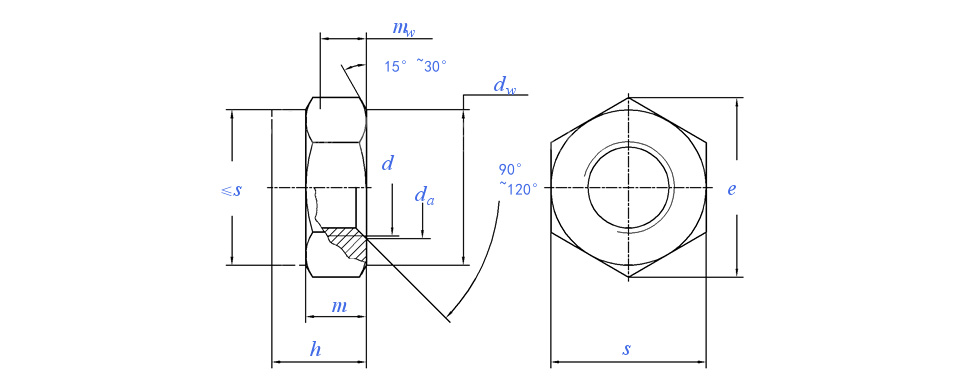

| Gewindegröße | M3 | M4 | M5 | M6 | M7 | M8 | M10 | M12 | M14 | M16 | M18 | |||
| d | ||||||||||||||
| P | Schraubensteigung | Grobe Zähne | 0.5 | 0.7 | 0.8 | 1 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | |
| Feiner Zahn 1 | / | / | / | / | / | 1 | 1 | 1.5 | 1.5 | 1.5 | 2 | |||
| Feiner Zahn 2 | / | / | / | / | / | / | 1.25 | 1.25 | / | / | 1.5 | |||
| da | Mindest | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 | 18 | ||
| Max | 3.45 | 4.6 | 5.75 | 6.75 | 7.75 | 8.75 | 10.8 | 13 | 15.1 | 17.3 | 19.5 | |||
| dw | Mindest | 4.6 | 5.9 | 6.9 | 8.9 | 9.6 | 11.6 | 15.6 | 17.4 | 20.5 | 22.5 | 24.9 | ||
| e | Mindest | 6.01 | 7.66 | 8.79 | 11.05 | 12.12 | 14.38 | 18.9 | 21.1 | 24.49 | 26.75 | 29.56 | ||
| h | Max=Nominal | 4 | 5 | 5 | 6 | 7.5 | 8 | 10 | 12 | 14 | 16 | 18.5 | ||
| Mindest | 3.7 | 4.7 | 4.7 | 5.7 | 7.14 | 7.64 | 9.64 | 11.57 | 13.3 | 15.3 | 17.66 | |||
| m | Mindest | 2.4 | 2.9 | 3.2 | 4 | 4.7 | 5.5 | 6.5 | 8 | 9.5 | 10.5 | 13 | ||
| mw | Mindest | 1.65 | 2.2 | 2.75 | 3.3 | 3.85 | 4.4 | 5.5 | 6.6 | 7.7 | 8.8 | 9.9 | ||
| s | Max=Nominal | 5.5 | 7 | 8 | 10 | 11 | 13 | 17 | 19 | 22 | 24 | 27 | ||
| Mindest | 5.32 | 6.78 | 7.78 | 9.78 | 10.73 | 12.73 | 16.73 | 18.67 | 21.67 | 23.67 | 26.16 | |||
| Tausend-Stück-Gewicht (kg) | 0.5 | 1 | 1.4 | 2.4 | 3 | 5.1 | 10.6 | 17.2 | 26 | 34 | 45 | |||
| Gewindegröße | M20 | M22 | M24 | M27 | M30 | M33 | M36 | M39 | M42 | M45 | M48 | |||
| d | ||||||||||||||
| P | Schraubensteigung | Grobe Zähne | 2.5 | 2.5 | 3 | 3 | 3.5 | 3.5 | 4 | 4 | 4.5 | 4.5 | 5 | |
| Feiner Zahn 1 | 2 | 2 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | |||
| Feiner Zahn 2 | 1.5 | 1.5 | / | / | / | / | / | / | / | / | / | |||
| da | Mindest | 20 | 22 | 24 | 27 | 30 | 33 | 36 | 39 | 42 | 45 | 48 | ||
| Max | 21.6 | 23.7 | 25.9 | 29.1 | 32.4 | 35.6 | 38.9 | 42.1 | 45.4 | 48.6 | 51.8 | |||
| dw | Mindest | 27.7 | 29.5 | 33.2 | 38 | 42.7 | 46.6 | 51.1 | 55.9 | 60.6 | 64.7 | 69.4 | ||
| e | Mindest | 32.95 | 35.03 | 39.55 | 45.2 | 50.85 | 55.37 | 60.79 | 66.44 | 72.09 | 76.95 | 82.6 | ||
| h | Max=Nominal | 20 | 22 | 24 | 27 | 30 | 33 | 36 | 39 | 42 | 45 | 48 | ||
| Mindest | 18.7 | 20.7 | 22.7 | 25.7 | 28.7 | 31.4 | 34.4 | 37.4 | 40.4 | 43.4 | 46.4 | |||
| m | Mindest | 14 | 15 | 15 | 17 | 19 | 22 | 25 | 27 | 29 | 32 | 36 | ||
| mw | Mindest | 11 | 12.2 | 13.2 | 14.8 | 16.5 | 18.2 | 19.8 | 21.5 | 23.1 | 24.8 | 26.5 | ||
| s | Max=Nominal | 30 | 32 | 36 | 41 | 46 | 50 | 55 | 60 | 65 | 70 | 75 | ||
| Mindest | 29.16 | 31 | 35 | 40 | 45 | 49 | 53.8 | 58.8 | 63.8 | 68.1 | 73.1 | |||
| Tausend-Stück-Gewicht (kg) | 65 | 75 | 100 | 162 | 212 | 317 | 415 | 499 | 628 | 771 | 998 | |||
Material
| 304 Chemische Zusammensetzung (%) | ||||||||
| Grad | C≤ | Mn≤ | Si≤ | S≤ | P≤ | Cr | Ni | N≤ |
| 0.08 | 2 | 0.75 | 0.03 | 0.045 | 18.0-20.0 | 8,0-10,5 | 0.1 | |
| 304 Mechanisches Eigentum | |||
| σb≥ | σ0,2≥ | δ5 (%)≥ | Härte (HB) (kgf/mm2)] |
| 520 (MPa) | 205 (MPa) | 40 % | ≤187 HRB≤90 HV ≤200 |
| 316 Chemische Zusammensetzung (%) | ||||||||||
| Grad | C≤ | Mn≤ | Si≤ | S≤ | P≤ | Cr | Ni | Cu | MO | N |
| 0.017 | 0.98 | 0.25 | 0.0016 | 0.0414 | 16.23 | 10.08 | 0.32 | 2.06 | 0.037 | |
| 316 Mechanisches Eigentum | |||
| σb≥ | σ0,2≥ | δ5 (%)≥ | Härte (HB) (kgf/mm2)] |
| 520 (MPa) | 205 (MPa) | 40 % | ≤187 HRB≤90 HV ≤200 |
Sechskant-Kontermutter aus Nylon
Spezifikation
| Gewindegröße | M3 | M4 | M5 | M6 | M7 | M8 | M10 | M12 | M14 | M16 | M18 | |||
| d | ||||||||||||||
| P | Schraubensteigung | Grobe Zähne | 0.5 | 0.7 | 0.8 | 1 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | |
| Feiner Zahn 1 | / | / | / | / | / | 1 | 1 | 1.5 | 1.5 | 1.5 | 2 | |||
| Feiner Zahn 2 | / | / | / | / | / | / | 1.25 | 1.25 | / | / | 1.5 | |||
| da | Mindest | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 | 18 | ||
| Max | 3.45 | 4.6 | 5.75 | 6.75 | 7.75 | 8.75 | 10.8 | 13 | 15.1 | 17.3 | 19.5 | |||
| dw | Mindest | 4.6 | 5.9 | 6.9 | 8.9 | 9.6 | 11.6 | 15.6 | 17.4 | 20.5 | 22.5 | 24.9 | ||
| e | Mindest | 6.01 | 7.66 | 8.79 | 11.05 | 12.12 | 14.38 | 18.9 | 21.1 | 24.49 | 26.75 | 29.56 | ||
| h | Max=Nominal | 4 | 5 | 5 | 6 | 7.5 | 8 | 10 | 12 | 14 | 16 | 18.5 | ||
| Mindest | 3.7 | 4.7 | 4.7 | 5.7 | 7.14 | 7.64 | 9.64 | 11.57 | 13.3 | 15.3 | 17.66 | |||
| m | Mindest | 2.4 | 2.9 | 3.2 | 4 | 4.7 | 5.5 | 6.5 | 8 | 9.5 | 10.5 | 13 | ||
| mw | Mindest | 1.65 | 2.2 | 2.75 | 3.3 | 3.85 | 4.4 | 5.5 | 6.6 | 7.7 | 8.8 | 9.9 | ||
| s | Max=Nominal | 5.5 | 7 | 8 | 10 | 11 | 13 | 17 | 19 | 22 | 24 | 27 | ||
| Mindest | 5.32 | 6.78 | 7.78 | 9.78 | 10.73 | 12.73 | 16.73 | 18.67 | 21.67 | 23.67 | 26.16 | |||
| Tausend-Stück-Gewicht (kg) | 0.5 | 1 | 1.4 | 2.4 | 3 | 5.1 | 10.6 | 17.2 | 26 | 34 | 45 | |||
| Gewindegröße | M20 | M22 | M24 | M27 | M30 | M33 | M36 | M39 | M42 | M45 | M48 | |||
| d | ||||||||||||||
| P | Schraubensteigung | Grobe Zähne | 2.5 | 2.5 | 3 | 3 | 3.5 | 3.5 | 4 | 4 | 4.5 | 4.5 | 5 | |
| Feiner Zahn 1 | 2 | 2 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | |||
| Feiner Zahn 2 | 1.5 | 1.5 | / | / | / | / | / | / | / | / | / | |||
| da | Mindest | 20 | 22 | 24 | 27 | 30 | 33 | 36 | 39 | 42 | 45 | 48 | ||
| Max | 21.6 | 23.7 | 25.9 | 29.1 | 32.4 | 35.6 | 38.9 | 42.1 | 45.4 | 48.6 | 51.8 | |||
| dw | Mindest | 27.7 | 29.5 | 33.2 | 38 | 42.7 | 46.6 | 51.1 | 55.9 | 60.6 | 64.7 | 69.4 | ||
| e | Mindest | 32.95 | 35.03 | 39.55 | 45.2 | 50.85 | 55.37 | 60.79 | 66.44 | 72.09 | 76.95 | 82.6 | ||
| h | Max=Nominal | 20 | 22 | 24 | 27 | 30 | 33 | 36 | 39 | 42 | 45 | 48 | ||
| Mindest | 18.7 | 20.7 | 22.7 | 25.7 | 28.7 | 31.4 | 34.4 | 37.4 | 40.4 | 43.4 | 46.4 | |||
| m | Mindest | 14 | 15 | 15 | 17 | 19 | 22 | 25 | 27 | 29 | 32 | 36 | ||
| mw | Mindest | 11 | 12.2 | 13.2 | 14.8 | 16.5 | 18.2 | 19.8 | 21.5 | 23.1 | 24.8 | 26.5 | ||
| s | Max=Nominal | 30 | 32 | 36 | 41 | 46 | 50 | 55 | 60 | 65 | 70 | 75 | ||
| Mindest | 29.16 | 31 | 35 | 40 | 45 | 49 | 53.8 | 58.8 | 63.8 | 68.1 | 73.1 | |||
| Tausend-Stück-Gewicht (kg) | 65 | 75 | 100 | 162 | 212 | 317 | 415 | 499 | 628 | 771 | 998 | |||
Material
| 304 Chemische Zusammensetzung (%) | ||||||||
| Grad | C≤ | Mn≤ | Si≤ | S≤ | P≤ | Cr | Ni | N≤ |
| 0.08 | 2 | 0.75 | 0.03 | 0.045 | 18.0-20.0 | 8,0-10,5 | 0.1 | |
| 304 Mechanisches Eigentum | |||
| σb≥ | σ0,2≥ | δ5 (%)≥ | Härte (HB) (kgf/mm2)] |
| 520 (MPa) | 205 (MPa) | 40 % | ≤187 HRB≤90 HV ≤200 |
| 316 Chemische Zusammensetzung (%) | ||||||||||
| Grad | C≤ | Mn≤ | Si≤ | S≤ | P≤ | Cr | Ni | Cu | MO | N |
| 0.017 | 0.98 | 0.25 | 0.0016 | 0.0414 | 16.23 | 10.08 | 0.32 | 2.06 | 0.037 | |
| 316 Mechanisches Eigentum | |||
| σb≥ | σ0,2≥ | δ5 (%)≥ | Härte (HB) (kgf/mm2)] |
| 520 (MPa) | 205 (MPa) | 40 % | ≤187 HRB≤90 HV ≤200 |
