DIN934
Goshen

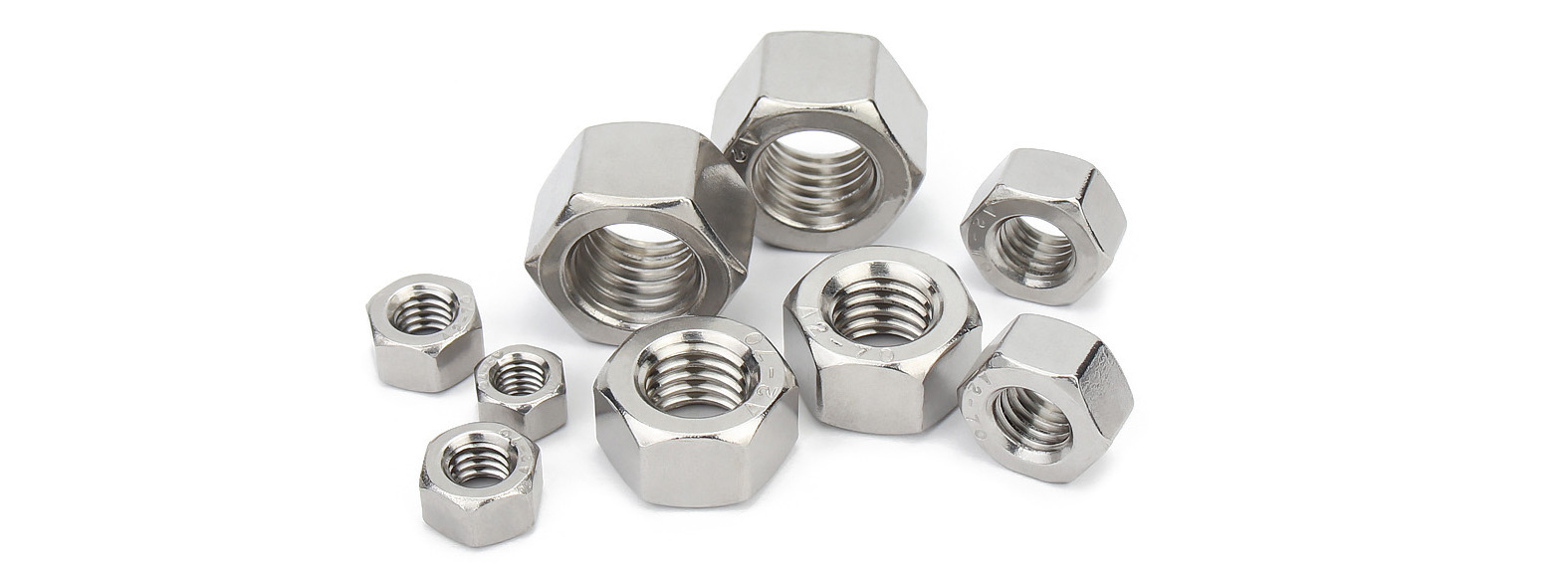

Sechskantmuttern aus Edelstahl 2205
Duplex-Edelstahl (DSS) besteht zu etwa 50 % aus Ferrit und Austenit und erfordert im Allgemeinen weniger als 30 % Edelstahl. Bei einem geringeren C-Gehalt liegt der Cr-Gehalt zwischen 18 % und 28 %, der Ni-Gehalt zwischen 3 % und 10 %. Einige Stähle enthalten auch Legierungselemente wie Mo, Cu, Nb, Ti und N.

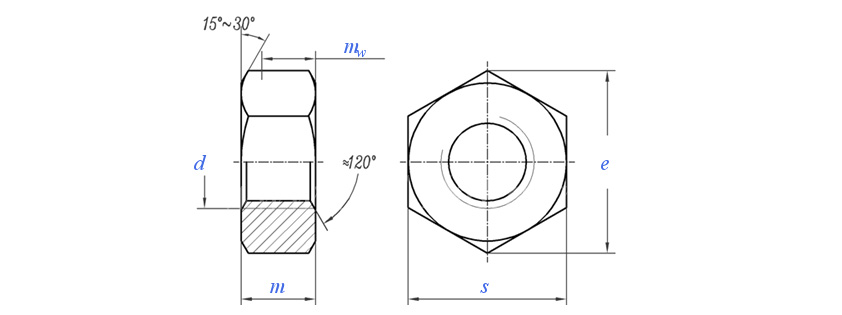

Spezifikation
| Gewindegröße | M1 | M1.2 | M1.4 | M1.6 | (M1.7) | M2 | (M2.3) | M2,5 | (M2.6) | M3 | (M3.5) | M4 | M5 | M6 | (M7) | ||||
| d | |||||||||||||||||||
| P | Schraubensteigung | Grobe Zähne | 0.25 | 0.25 | 0.3 | 0.35 | 0.35 | 0.4 | 0.45 | 0.45 | 0.45 | 0.5 | 0.6 | 0.7 | 0.8 | 1 | 1 | ||
| Feiner Zahn 1 | / | / | / | / | / | / | / | / | / | / | / | / | / | / | / | ||||
| Feiner Zahn 2 | / | / | / | / | / | / | / | / | / | / | / | / | / | / | / | ||||
| m | Maximalwert = Nominalwert | 0.8 | 1 | 1.2 | 1.3 | 1.4 | 1.6 | 1.8 | 2 | 2 | 2.4 | 2.8 | 3.2 | 4 | 5 | 5.5 | |||
| Mindest | 0.55 | 0.75 | 0.95 | 1.05 | 1.15 | 1.35 | 1.55 | 1.75 | 1.75 | 2.15 | 2.55 | 2.9 | 3.7 | 4.7 | 5.2 | ||||
| mw | Mindest | 0.44 | 0.6 | 0.76 | 0.84 | 0.92 | 1.08 | 1.24 | 1.4 | 1.4 | 1.72 | 2.04 | 2.32 | 2.96 | 3.76 | 4.16 | |||
| s | Max=Nominal | 2.5 | 3 | 3 | 3.2 | 3.5 | 4 | 4.5 | 5 | 5 | 5.5 | 6 | 7 | 8 | 10 | 11 | |||
| Mindest | 2.4 | 2.9 | 2.9 | 3.02 | 3.38 | 3.82 | 4.32 | 4.82 | 4.82 | 5.32 | 5.82 | 6.78 | 7.78 | 9.78 | 10.73 | ||||
| e ① | Mindest | 2.71 | 3.28 | 3.28 | 3.41 | 3.82 | 4.32 | 4.88 | 5.45 | 5.45 | 6.01 | 6.58 | 7.66 | 8.79 | 11.05 | 12.12 | |||
| * | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||||
| Tausend Gewichtsstücke (Stahl)≈kg | 0.03 | 0.054 | 0.063 | 0.076 | 0.1 | 0.142 | 0.2 | 0.28 | 0.72 | 0.384 | 0.514 | 0.81 | 1.23 | 2.5 | 3.12 | ||||
| Gewindegröße | M10 | M12 | (M14) | M16 | (M18) | M20 | (M22) | M24 | (M27) | M30 | (M33) | M36 | (M39) | M42 | (M45) | ||||
| d | |||||||||||||||||||
| P | 螺距 | 粗牙 | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3.5 | 3.5 | 4 | 4 | 4.5 | 4.5 | ||
| Seite 1 | 1 | 1.5 | 1.5 | 1.5 | 1.5 | 2 | 1.5 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | ||||
| Seite 2 | 1.25 | 1.25 | / | / | 2 | 1.5 | 2 | / | / | / | / | / | / | / | / | ||||
| m | Max=Nominal | 8 | 10 | 11 | 13 | 15 | 16 | 18 | 19 | 22 | 24 | 26 | 29 | 31 | 34 | 36 | |||
| Mindest | 7.64 | 9.64 | 10.3 | 12.3 | 14.3 | 14.9 | 16.9 | 17.7 | 20.7 | 22.7 | 24.7 | 27.4 | 29.4 | 32.4 | 34.4 | ||||
| mw | Mindest | 6.11 | 7.71 | 8.24 | 9.84 | 11.44 | 11.92 | 13.52 | 14.16 | 16.56 | 18.16 | 19.76 | 21.92 | 23.52 | 25.9 | 27.5 | |||
| s | Max=Nominal | 17 | 19 | 22 | 24 | 27 | 30 | 32 | 36 | 41 | 46 | 50 | 55 | 60 | 65 | 70 | |||
| Mindest | 16.73 | 18.67 | 21.67 | 23.67 | 26.16 | 29.16 | 31 | 35 | 40 | 45 | 49 | 53.8 | 58.8 | 63.1 | 68.1 | ||||
| e ① | Mindest | 18.9 | 21.1 | 24.49 | 26.75 | 29.56 | 32.95 | 35.03 | 39.55 | 45.2 | 50.85 | 55.37 | 60.79 | 66.44 | 71.3 | 76.95 | |||
| * | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||||
| Tausend Gewichtsstücke (Stahl)≈kg | 11.6 | 17.3 | 25 | 33.3 | 49.4 | 64.4 | 79 | 110 | 165 | 223 | 288 | 393 | 502 | 652 | 800 | ||||
| Gewindegröße | (M52) | M56 | (M60) | M64 | (M68) | M72 | (M76) | M80 | (M85) | M90 | M100 | M110 | M125 | M140 | M160 | ||||
| d | |||||||||||||||||||
| P | Schraubensteigung | Grobe Zähne | 5 | 5.5 | 5.5 | 6 | 6 | / | / | / | / | / | / | / | / | / | / | ||
| Feiner Zahn 1 | 3 | 4 | 4 | 4 | / | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | ||||
| Feiner Zahn 2 | / | / | / | / | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | / | / | ||||
| m | Max=Nominal | 42 | 45 | 48 | 51 | 54 | 58 | 61 | 64 | 68 | 72 | 80 | 88 | 100 | 112 | 128 | |||
| Mindest | 40.4 | 43.4 | 46.4 | 49.1 | 52.1 | 56.1 | 59.1 | 62.1 | 66.1 | 70.1 | 78.1 | 85.8 | 97.8 | 109.8 | 125.5 | ||||
| mw | Mindest | 32.3 | 34.7 | 37.1 | 39.3 | 41.7 | 44.9 | 47.3 | 49.7 | 52.9 | 56.1 | 62.5 | 68.6 | 78.2 | 87.8 | 100 | |||
| s | Max=Nominal | 80 | 85 | 90 | 95 | 100 | 105 | 110 | 115 | 120 | 130 | 145 | 155 | 180 | 200 | 230 | |||
| Mindest | 78.1 | 82.8 | 87.8 | 92.8 | 97.8 | 102.8 | 107.8 | 112.8 | 117.8 | 127.5 | 142.5 | 152.5 | 177.5 | 195.4 | 225.4 | ||||
| e ① | Mindest | 88.25 | 93.56 | 99.21 | 104.86 | 110.51 | 116.16 | 121.81 | 127.46 | 133.11 | 144.08 | 161.02 | 172.32 | 200.57 | 220.8 | 254.7 | |||
| * | - | - | - | - | - | - | - | - | - | - | - | 170 | 196 | 216 | 248 | ||||
| Tausend Gewichtsstücke (Stahl)≈kg | 1220 | 1420 | 1690 | 1980 | 2300 | 2670 | 3040 | 3440 | 3930 | 4930 | 6820 | 8200 | 13000 | 17500 | 26500 | ||||
Material
| SS2205 Chemische Zusammensetzung (%) | |||||||||
| Grad | C≤ | Mn≤ | P≤ | S≤ | Si≤ | Ni | Cr | Mo | N |
| 0.030 | 2.0 | 0.03 | 0.02 | 1.0 | 4,5-6,5 | 21-23 | 2,5-3,5 | 0,08-0,2 | |
| 2205 Mechanisches Eigentum | |||
| σb≥ | σb≥ | δ≥ | HB[N(kgf/mm2)] |
| 795 (MPa) | 550 (Mpa) | 15% | ≤310 (HB) |
