DIN976 DIN975
Goshen

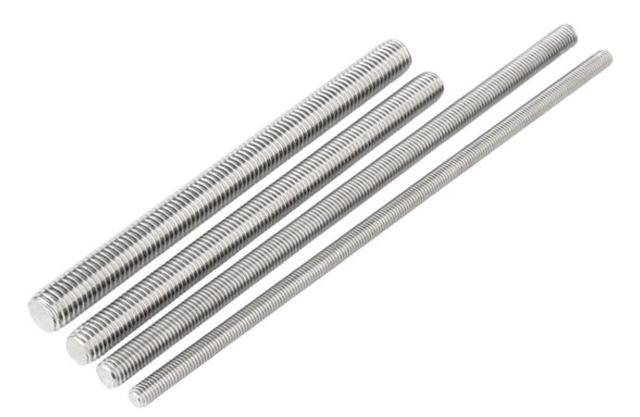

Gewindestange aus Edelstahl
Spezifikation

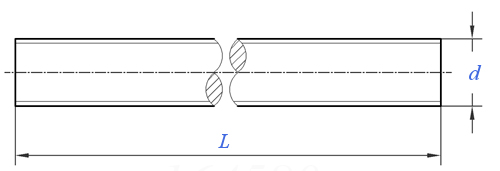

| Gewindegröße | M2 | M2,5 | M3 | (M3.5) | M4 | M5 | M6 | M8 | M10 | M12 | (M14) | M16 | (M18) | ||
| d | |||||||||||||||
| P | Grobe Zähne | 0.4 | 0.45 | 0.5 | 0.6 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | |
| Dentikel | / | / | / | / | / | / | / | 1 | 1.25 | 1.25 | 1.5 | 1.5 | 1.5 | ||
| Dentikel | / | / | / | / | / | / | / | / | 1 | 1.5 | / | / | / | ||
| L | ±10 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | |
| Tausend Gewichtsstücke (Stahl)≈kg | 18.7 | 30 | 44 | 60 | 78 | 124 | 177 | 319 | 500 | 725 | 970 | 1330 | 1650 | ||
| Gewindegröße | M20 | (M22) | M24 | (M27) | M30 | (M33) | M36 | (M39) | M42 | (M45) | M48 | (M52) | ||
| d | ||||||||||||||
| P | Grobe Zähne | 2.5 | 2.5 | 3 | 3 | 3.5 | 3.5 | 4 | 4 | 4.5 | 4.5 | 5 | 5 | |
| Dentikel | 1.5 | 1.5 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | ||
| Dentikel | / | / | / | / | / | / | / | / | / | / | / | / | ||
| L | ±10 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | |
| Tausend Gewichtsstücke (Stahl)≈kg | 2080 | 2540 | 3000 | 3850 | 4750 | 5900 | 6900 | 8200 | 9400 | 11000 | 12400 | 14700 | ||
Material
| Chemische Zusammensetzung SS316 (%) | ||||||||
| Grad | C≤ | Mn≤ | P≤ | S≤ | Si≤ | Ni | Cr | Mo |
| 0.08 | 2.00 | 0.045 | 0.030 | 1 | 10,0-14,0 | 16.0-18.0 | 2,0-3,0 | |
| 316 Mechanisches Eigentum | |||
| σb≥ | σ0,2≥ | δ5 (%)≥ | Härte (HB) (kgf/mm2)] |
| 520 (MPa) | 205 (Mpa) | 40 % | ≤187 HRB≤90 HV ≤200 |
| 304 Chemische Zusammensetzung (%) | ||||||||
| Grad | C≤ | Mn≤ | Si≤ | S≤ | P≤ | Cr | Ni | N≤ |
| 0.08 | 2 | 0.75 | 0.03 | 0.045 | 18.0-20.0 | 8,0-10,5 | 0.1 | |
| 304 Mechanisches Eigentum | |||
| σb≥ | σ0,2≥ | δ5 (%)≥ | Härte (HB) (kgf/mm2)] |
| 520 (MPa) | 205 (Mpa) | 40 % | ≤187 HRB≤90 HV ≤200 |
Gewindestange aus Edelstahl
Spezifikation
| Gewindegröße | M2 | M2,5 | M3 | (M3.5) | M4 | M5 | M6 | M8 | M10 | M12 | (M14) | M16 | (M18) | ||
| d | |||||||||||||||
| P | Grobe Zähne | 0.4 | 0.45 | 0.5 | 0.6 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | |
| Dentikel | / | / | / | / | / | / | / | 1 | 1.25 | 1.25 | 1.5 | 1.5 | 1.5 | ||
| Dentikel | / | / | / | / | / | / | / | / | 1 | 1.5 | / | / | / | ||
| L | ±10 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | |
| Tausend Gewichtsstücke (Stahl)≈kg | 18.7 | 30 | 44 | 60 | 78 | 124 | 177 | 319 | 500 | 725 | 970 | 1330 | 1650 | ||
| Gewindegröße | M20 | (M22) | M24 | (M27) | M30 | (M33) | M36 | (M39) | M42 | (M45) | M48 | (M52) | ||
| d | ||||||||||||||
| P | Grobe Zähne | 2.5 | 2.5 | 3 | 3 | 3.5 | 3.5 | 4 | 4 | 4.5 | 4.5 | 5 | 5 | |
| Dentikel | 1.5 | 1.5 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | ||
| Dentikel | / | / | / | / | / | / | / | / | / | / | / | / | ||
| L | ±10 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | |
| Tausend Gewichtsstücke (Stahl)≈kg | 2080 | 2540 | 3000 | 3850 | 4750 | 5900 | 6900 | 8200 | 9400 | 11000 | 12400 | 14700 | ||
Material
| Chemische Zusammensetzung SS316 (%) | ||||||||
| Grad | C≤ | Mn≤ | P≤ | S≤ | Si≤ | Ni | Cr | Mo |
| 0.08 | 2.00 | 0.045 | 0.030 | 1 | 10,0-14,0 | 16.0-18.0 | 2,0-3,0 | |
| 316 Mechanisches Eigentum | |||
| σb≥ | σ0,2≥ | δ5 (%)≥ | Härte (HB) (kgf/mm2)] |
| 520 (MPa) | 205 (Mpa) | 40 % | ≤187 HRB≤90 HV ≤200 |
| 304 Chemische Zusammensetzung (%) | ||||||||
| Grad | C≤ | Mn≤ | Si≤ | S≤ | P≤ | Cr | Ni | N≤ |
| 0.08 | 2 | 0.75 | 0.03 | 0.045 | 18.0-20.0 | 8,0-10,5 | 0.1 | |
| 304 Mechanisches Eigentum | |||
| σb≥ | σ0,2≥ | δ5 (%)≥ | Härte (HB) (kgf/mm2)] |
| 520 (MPa) | 205 (Mpa) | 40 % | ≤187 HRB≤90 HV ≤200 |
