DIN444
GS

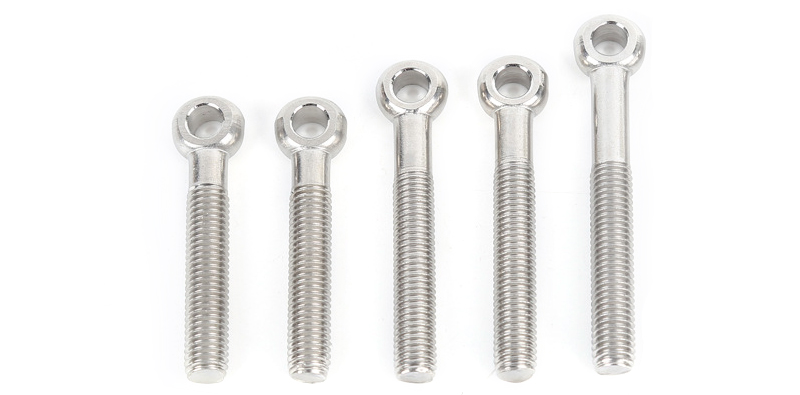

Edelstahl 304 316 Din444 Vollgewinde-Augenschraube
Größe: M5-M39
Material:304 316
OEM: Akzeptabel
Probe: Kostenlose Probe kann zum Test verschickt werden
Verpackungsdetails: Karton + Bastelbox
Hafen: Shanghai NingBo

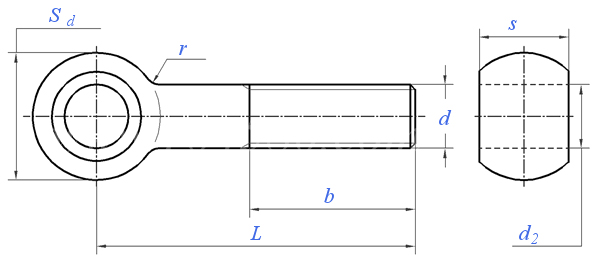

Spezifikation
| Thread-Spezifikation | M5 | M6 | M8 | M10 | M12 | M16 | M20 | M24 | (M27) | ||||
| d | |||||||||||||
| P | Schraubensteigung | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2.5 | 3 | 3 | |||
| b | L≤125 | 16 | 18 | 22 | 26 | 30 | 38 | 46 | 54 | 60 | |||
| 125＜L≤200 | - | - | 28 | 32 | 36 | 44 | 52 | 60 | 66 | ||||
| L>200 | - | - | - | - | 49 | 57 | 65 | 73 | 79 | ||||
| d2 | Min=Nominal | 5 | 6 | 8 | 10 | 12 | 16 | 18 | 22 | 24 ② | |||
| Max | 5.03 | 6.03 | 8.036 | 10.036 | 12.043 | 16.043 | 18.043 | 22.052 | 24.052 | ||||
| Sd | Max | 12 | 14 | 18 | 20 | 25 | 32 | 40 | 45 | 50 | |||
| Tippe A | Mindest | 10.9 | 12.9 | 16.9 | 18.7 | 23.7 | 30.4 | 38.4 | 43.4 | 48.4 | |||
| B- und C-Typen | Mindest | 11.57 | 13.57 | 17.57 | 19.48 | 24.48 | 31.38 | 39.38 | 44.38 | 49.38 | |||
| r | Nominell | 2.5 | 4 | 4 | 4 | 6 | 6 | 6 | 10 | 10 | |||
| Max | 3.75 | 6 | 6 | 6 | 9 | 9 | 9 | 15 | 15 | ||||
| Mindest | 1.875 | 3 | 3 | 3 | 4.5 | 4.5 | 4.5 | 7.5 | 7.5 | ||||
| s | Tippe A | Max | 8 | 9 | 11 | 14 | 17 | 19 | 24 | 28 | 30 | ||
| Mindest | 7.52 | 8.52 | 10.3 | 13.3 | 16.3 | 18.16 | 23.16 | 27.16 | 29.16 | ||||
| B- und C-Typen | Max | 6 | 7 | 9 | 12 | 14 | 17 | 22 | 25 | 27 | |||
| Mindest | 5.88 | 6.85 | 8.85 | 11.82 | 13.82 | 16.82 | 21.79 | 24.79 | 26.79 | ||||
| Thread-Spezifikation | (M27) | M30 | M30 | (M33) | M36 | M36 | (M39) | (M39) | ||||
| d | ||||||||||||
| P | Schraubensteigung | 3 | 3.5 | 3.5 | 3.5 | 4 | 4 | 4 | 4 | |||
| b | L≤125 | 60 | 66 | 66 | - | - | - | - | - | |||
| 125＜L≤200 | 66 | 72 | 72 | 78 | 84 | 84 | 90 | 90 | ||||
| L>200 | 79 | 85 | 85 | 91 | 97 | 97 | 103 | 103 | ||||
| d2 | Min=Nominal | 25 | 27 ② | 28 | 30 | 32 | 33 ② | 35 | 36 ② | |||
| Max | 25.052 | 27.052 | 28.052 | 30.052 | 32.062 | 33.062 | 35.062 | 36.062 | ||||
| Sd | Max | 50 | 55 | 55 | 60 | 65 | 65 | 70 | 70 | |||
| Tippe A | Mindest | 48.4 | 53.1 | 53.1 | 58.1 | 63.1 | 63.1 | 68.1 | 68.1 | |||
| Mindest | 49.38 | 54.26 | 54.26 | 59.26 | 64.26 | 64.26 | 69.26 | 69.26 | ||||
| r | Nominell | 10 | 10 | 10 | 16 | 16 | 16 | 16 | 16 | |||
| Max | 15 | 15 | 15 | 22.4 | 22.4 | 22.4 | 22.4 | 22.4 | ||||
| Mindest | 7.5 | 7.5 | 7.5 | 12.8 | 12.8 | 12.8 | 12.8 | 12.8 | ||||
| s | Tippe A | Max | 30 | 34 | 34 | 38 | 41 | 41 | 46 | 46 | ||
| Mindest | 29.16 | 33 | 33 | 37 | 40 | 40 | 45 | 45 | ||||
| B- und C-Typen | Max | 27 | 30 | 30 | 34 | 38 | 38 | 41 | 41 | |||
| Mindest | 26.79 | 29.79 | 29.79 | 33.75 | 37.75 | 37.75 | 40.75 | 40.75 | ||||
Material
| 304 Chemische Zusammensetzung (%) | ||||||||
| Grad | C≤ | Mn≤ | Si≤ | S≤ | P≤ | Cr | Ni | N≤ |
| 0.08 | 2 | 0.75 | 0.03 | 0.045 | 18.0-20.0 | 8,0-10,5 | 0.1 | |
| 304 Mechanisches Eigentum | |||
| σb≥ | σ0,2≥ | δ5 (%)≥ | Härte (HB) (kgf/mm2)] |
| 520 (MPa) | 205 (Mpa) | 40 % | ≤187 HRB≤90 HV ≤200 |
| 316 Chemische Zusammensetzung (%) | ||||||||||
| Grad | C≤ | Mn≤ | Si≤ | S≤ | P≤ | Cr | Ni | Cu | MO | N |
| 0.017 | 0.98 | 0.25 | 0.0016 | 0.0414 | 16.23 | 10.08 | 0.32 | 2.06 | 0.037 | |
| 316 Mechanisches Eigentum | |||
| σb≥ | σ0,2≥ | δ5 (%)≥ | Härte (HB) (kgf/mm2)] |
| 520 (MPa) | 205 (Mpa) | 40 % | ≤187 HRB≤90 HV ≤200 |
Edelstahl 304 316 Din444 Vollgewinde-Augenschraube
Größe: M5-M39
Material:304 316
OEM: Akzeptabel
Probe: Kostenlose Probe kann zum Test verschickt werden
Verpackungsdetails: Karton + Bastelbox
Hafen: Shanghai NingBo
Spezifikation
| Thread-Spezifikation | M5 | M6 | M8 | M10 | M12 | M16 | M20 | M24 | (M27) | ||||
| d | |||||||||||||
| P | Schraubensteigung | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2.5 | 3 | 3 | |||
| b | L≤125 | 16 | 18 | 22 | 26 | 30 | 38 | 46 | 54 | 60 | |||
| 125＜L≤200 | - | - | 28 | 32 | 36 | 44 | 52 | 60 | 66 | ||||
| L>200 | - | - | - | - | 49 | 57 | 65 | 73 | 79 | ||||
| d2 | Min=Nominal | 5 | 6 | 8 | 10 | 12 | 16 | 18 | 22 | 24 ② | |||
| Max | 5.03 | 6.03 | 8.036 | 10.036 | 12.043 | 16.043 | 18.043 | 22.052 | 24.052 | ||||
| Sd | Max | 12 | 14 | 18 | 20 | 25 | 32 | 40 | 45 | 50 | |||
| Tippe A | Mindest | 10.9 | 12.9 | 16.9 | 18.7 | 23.7 | 30.4 | 38.4 | 43.4 | 48.4 | |||
| B- und C-Typen | Mindest | 11.57 | 13.57 | 17.57 | 19.48 | 24.48 | 31.38 | 39.38 | 44.38 | 49.38 | |||
| r | Nominell | 2.5 | 4 | 4 | 4 | 6 | 6 | 6 | 10 | 10 | |||
| Max | 3.75 | 6 | 6 | 6 | 9 | 9 | 9 | 15 | 15 | ||||
| Mindest | 1.875 | 3 | 3 | 3 | 4.5 | 4.5 | 4.5 | 7.5 | 7.5 | ||||
| s | Tippe A | Max | 8 | 9 | 11 | 14 | 17 | 19 | 24 | 28 | 30 | ||
| Mindest | 7.52 | 8.52 | 10.3 | 13.3 | 16.3 | 18.16 | 23.16 | 27.16 | 29.16 | ||||
| B- und C-Typen | Max | 6 | 7 | 9 | 12 | 14 | 17 | 22 | 25 | 27 | |||
| Mindest | 5.88 | 6.85 | 8.85 | 11.82 | 13.82 | 16.82 | 21.79 | 24.79 | 26.79 | ||||
| Thread-Spezifikation | (M27) | M30 | M30 | (M33) | M36 | M36 | (M39) | (M39) | ||||
| d | ||||||||||||
| P | Schraubensteigung | 3 | 3.5 | 3.5 | 3.5 | 4 | 4 | 4 | 4 | |||
| b | L≤125 | 60 | 66 | 66 | - | - | - | - | - | |||
| 125＜L≤200 | 66 | 72 | 72 | 78 | 84 | 84 | 90 | 90 | ||||
| L>200 | 79 | 85 | 85 | 91 | 97 | 97 | 103 | 103 | ||||
| d2 | Min=Nominal | 25 | 27 ② | 28 | 30 | 32 | 33 ② | 35 | 36 ② | |||
| Max | 25.052 | 27.052 | 28.052 | 30.052 | 32.062 | 33.062 | 35.062 | 36.062 | ||||
| Sd | Max | 50 | 55 | 55 | 60 | 65 | 65 | 70 | 70 | |||
| Tippe A | Mindest | 48.4 | 53.1 | 53.1 | 58.1 | 63.1 | 63.1 | 68.1 | 68.1 | |||
| Mindest | 49.38 | 54.26 | 54.26 | 59.26 | 64.26 | 64.26 | 69.26 | 69.26 | ||||
| r | Nominell | 10 | 10 | 10 | 16 | 16 | 16 | 16 | 16 | |||
| Max | 15 | 15 | 15 | 22.4 | 22.4 | 22.4 | 22.4 | 22.4 | ||||
| Mindest | 7.5 | 7.5 | 7.5 | 12.8 | 12.8 | 12.8 | 12.8 | 12.8 | ||||
| s | Tippe A | Max | 30 | 34 | 34 | 38 | 41 | 41 | 46 | 46 | ||
| Mindest | 29.16 | 33 | 33 | 37 | 40 | 40 | 45 | 45 | ||||
| B- und C-Typen | Max | 27 | 30 | 30 | 34 | 38 | 38 | 41 | 41 | |||
| Mindest | 26.79 | 29.79 | 29.79 | 33.75 | 37.75 | 37.75 | 40.75 | 40.75 | ||||
Material
| 304 Chemische Zusammensetzung (%) | ||||||||
| Grad | C≤ | Mn≤ | Si≤ | S≤ | P≤ | Cr | Ni | N≤ |
| 0.08 | 2 | 0.75 | 0.03 | 0.045 | 18.0-20.0 | 8,0-10,5 | 0.1 | |
| 304 Mechanisches Eigentum | |||
| σb≥ | σ0,2≥ | δ5 (%)≥ | Härte (HB) (kgf/mm2)] |
| 520 (MPa) | 205 (Mpa) | 40 % | ≤187 HRB≤90 HV ≤200 |
| 316 Chemische Zusammensetzung (%) | ||||||||||
| Grad | C≤ | Mn≤ | Si≤ | S≤ | P≤ | Cr | Ni | Cu | MO | N |
| 0.017 | 0.98 | 0.25 | 0.0016 | 0.0414 | 16.23 | 10.08 | 0.32 | 2.06 | 0.037 | |
| 316 Mechanisches Eigentum | |||
| σb≥ | σ0,2≥ | δ5 (%)≥ | Härte (HB) (kgf/mm2)] |
| 520 (MPa) | 205 (Mpa) | 40 % | ≤187 HRB≤90 HV ≤200 |
