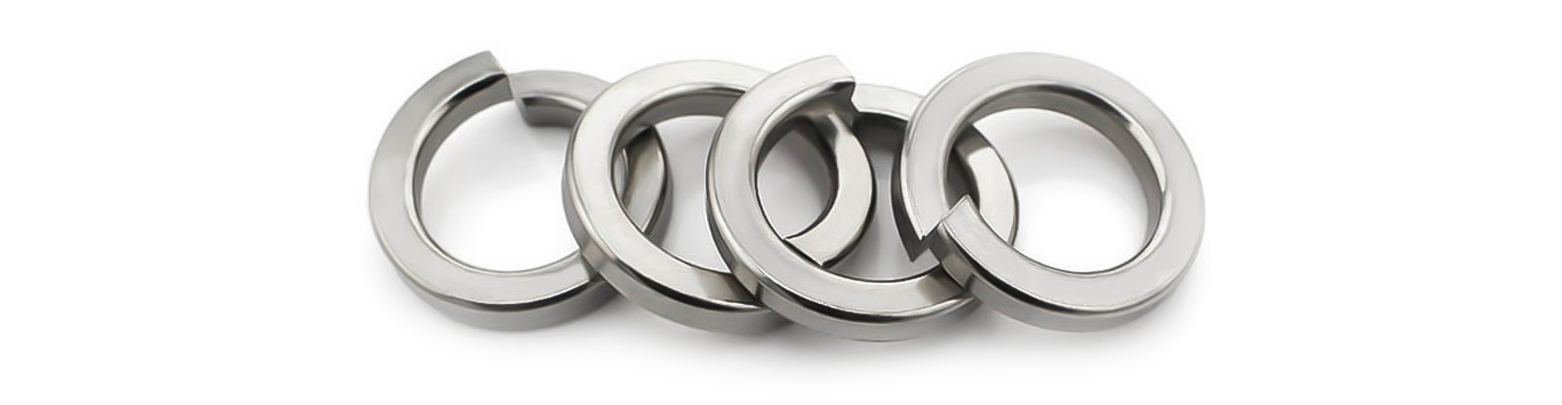

Produktname | Federscheiben aus Edelstahl 304 DIN127 |
Material | Edelstahl 304/316/316L |
OEM/Benutzerdefiniert | JA |
Besonderheit | 1. Korrosionsbeständig 2.Ausgezeichneter Lebenszyklus 3. Umweltfreundlich 4. Hochleistungsbefestigung |
Standardmäßig verfügbar | GB, DIN, ISO, ANSI, ASME, IFI, JIS, BSW, AS, Q, HJ, BS, PEN |
Material verfügbar | Edelstahl Titan und Titanlegierung Aluminium |
Verpackung | Karton+Karton +Palette oder nach Kundenwunsch |

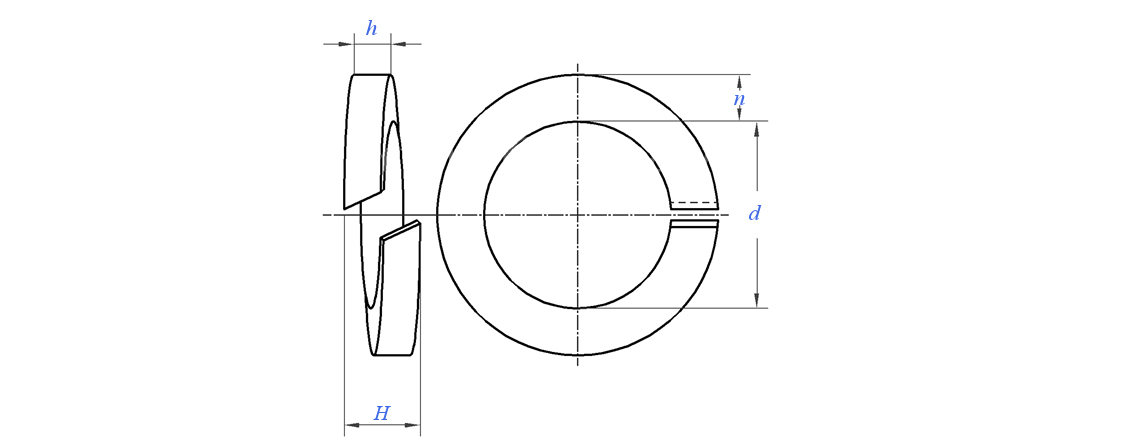

Spezifikation
| Nenndurchmesser | Φ2 | Φ2,2 | Φ2,5 | Φ3 | Φ3,5 | Φ4 | Φ5 | Φ6 | Φ7 | Φ8 | Φ10 | Φ12 | ||
| d | Mindest | 2.1 | 2.3 | 2.6 | 3.1 | 3.6 | 4.1 | 5.1 | 6.1 | 7.1 | 8.1 | 10.2 | 12.2 | |
| Max | 2.4 | 2.6 | 2.9 | 3.4 | 3.9 | 4.4 | 5.4 | 6.5 | 7.5 | 8.5 | 10.7 | 12.7 | ||
| n | Nominell | 0.9 | 1 | 1 | 1.3 | 1.3 | 1.5 | 1.8 | 2.5 | 2.5 | 3 | 3.5 | 4 | |
| Max | 1 | 1.1 | 1.1 | 1.4 | 1.4 | 1.6 | 1.9 | 2.65 | 2.65 | 3.15 | 3.7 | 4.2 | ||
| Mindest | 0.8 | 0.9 | 0.9 | 1.2 | 1.2 | 1.4 | 1.7 | 2.35 | 2.35 | 2.85 | 3.3 | 3.8 | ||
| h | Nominell | 0.5 | 0.6 | 0.6 | 0.8 | 0.8 | 0.9 | 1.2 | 1.6 | 1.6 | 2 | 2.2 | 2.5 | |
| Max | 0.6 | 0.7 | 0.7 | 0.9 | 0.9 | 1 | 1.3 | 1.7 | 1.7 | 2.1 | 2.35 | 2.65 | ||
| Mindest | 0.4 | 0.5 | 0.5 | 0.7 | 0.7 | 0.8 | 1.1 | 1.5 | 1.5 | 1.9 | 2.05 | 2.35 | ||
| H | Mindest | 1 | 1.2 | 1.2 | 1.6 | 1.6 | 1.8 | 2.4 | 3.2 | 3.2 | 4 | 4.4 | 5 | |
| Max | 1.2 | 1.4 | 1.4 | 1.9 | 1.9 | 2.1 | 2.8 | 3.8 | 3.8 | 4.7 | 5.2 | 5.9 | ||
| Tausend Gewichtsstücke (Stahl)≈kg | 0.033 | 0.05 | 0.053 | 0.11 | 0.12 | 0.18 | 0.36 | 0.83 | 0.93 | 1.6 | 2.53 | 3.82 | ||
| Nenndurchmesser | Φ14 | Φ16 | Φ18 | Φ20 | Φ22 | Φ24 | Φ27 | Φ30 | Φ36 | Φ39 | Φ42 | Φ45 | ||
| d | Mindest | 14.2 | 16.2 | 18.2 | 20.2 | 22.5 | 24.5 | 27.5 | 30.5 | 36.5 | 39.5 | 42.5 | 45.5 | |
| Max | 14.7 | 17 | 19 | 21.2 | 23.5 | 25.5 | 28.5 | 31.7 | 37.7 | 40.7 | 43.7 | 46.7 | ||
| n | Nominell | 4.5 | 5 | 5 | 6 | 6 | 7 | 7 | 8 | 10 | 10 | 12 | 12 | |
| Max | 4.7 | 5.2 | 5.2 | 6.2 | 6.2 | 7.25 | 7.25 | 8.25 | 10.25 | 10.25 | 12.25 | 12.25 | ||
| Mindest | 4.3 | 4.8 | 4.8 | 5.8 | 5.8 | 6.75 | 6.75 | 7.75 | 9.75 | 9.75 | 11.75 | 11.75 | ||
| h | Nominell | 3 | 3.5 | 3.5 | 4 | 4 | 5 | 5 | 6 | 6 | 6 | 7 | 7 | |
| Max | 3.15 | 3.7 | 3.7 | 4.2 | 4.2 | 5.2 | 5.2 | 6.2 | 6.2 | 6.2 | 7.25 | 7.25 | ||
| Mindest | 2.85 | 3.3 | 3.3 | 3.8 | 3.8 | 4.8 | 4.8 | 5.8 | 5.8 | 5.8 | 6.75 | 6.75 | ||
| H | Mindest | 6 | 7 | 7 | 8 | 8 | 10 | 10 | 12 | 12 | 12 | 14 | 14 | |
| Max | 7.1 | 8.3 | 8.3 | 9.4 | 9.4 | 11.8 | 11.8 | 14.2 | 14.2 | 14.2 | 16.5 | 16.5 | ||
| Tausend Gewichtsstücke (Stahl)≈kg | 6.01 | 8.91 | 9.73 | 15.2 | 16.5 | 26.2 | 28.7 | 44.3 | 67.3 | 71.7 | 111 | 117 | ||
| Nenndurchmesser | Φ48 | Φ52 | Φ56 | Φ60 | Φ64 | Φ68 | Φ72 | Φ80 | Φ90 | Φ100 | ||
| d | Mindest | 49 | 53 | 57 | 61 | 65 | 69 | 73 | 81 | 91 | 101 | |
| Max | 50.5 | 54.5 | 58.5 | 62.5 | 66.5 | 70.5 | 74.5 | 82.5 | 92.5 | 102.5 | ||
| n | Nominell | 12 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | |
| Max | 12.25 | 14.25 | 14.25 | 14.25 | 14.25 | 14.25 | 14.25 | 14.25 | 14.25 | 14.25 | ||
| Mindest | 11.75 | 13.75 | 13.75 | 13.75 | 13.75 | 13.75 | 13.75 | 13.75 | 13.75 | 13.75 | ||
| h | Nominell | 7 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | |
| Max | 7.25 | 8.25 | 8.25 | 8.25 | 8.25 | 8.25 | 8.25 | 8.25 | 8.25 | 8.25 | ||
| Mindest | 6.75 | 7.75 | 7.75 | 7.75 | 7.75 | 7.75 | 7.75 | 7.75 | 7.75 | 7.75 | ||
| H | Mindest | 14 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | |
| Max | 16.5 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | ||
| Tausend Gewichtsstücke (Stahl)≈kg | 123 | 182 | 193 | 203 | 218 | 228 | 240 | 262 | 290 | 318 | ||
Material
| 304 Chemische Zusammensetzung (%) | ||||||||
| Grad | C≤ | Mn≤ | Si≤ | S≤ | P≤ | Cr | Ni | N≤ |
| 0.08 | 2 | 0.75 | 0.03 | 0.045 | 18.0-20.0 | 8,0-10,5 | 0.1 | |
| 304 Mechanisches Eigentum | |||
| σb≥ | σ0,2≥ | δ5 (%)≥ | Härte (HB) (kgf/mm2)] |
| 520 (MPa) | 205 (Mpa) | 40 % | ≤187 HRB≤90 HV ≤200HB |
| 316 Chemische Zusammensetzung (%) | ||||||||||
| Grad | C≤ | Mn≤ | Si≤ | S≤ | P≤ | Cr | Ni | Cu | MO | N |
| 0.017 | 0.98 | 0.25 | 0.0016 | 0.0414 | 16.23 | 10.08 | 0.32 | 2.06 | 0.037 | |
| 316 Mechanisches Eigentum | |||
| σb≥ | σ0,2≥ | δ5 (%)≥ | Härte (HB) (kgf/mm2)] |
| 520 (MPa) | 205 (Mpa) | 40 % | ≤187 HRB≤90 HV ≤200 |
Produktname | Federscheiben aus Edelstahl 304 DIN127 |
Material | Edelstahl 304/316/316L |
OEM/Benutzerdefiniert | JA |
Besonderheit | 1. Korrosionsbeständig 2.Ausgezeichneter Lebenszyklus 3. Umweltfreundlich 4. Hochleistungsbefestigung |
Standardmäßig verfügbar | GB, DIN, ISO, ANSI, ASME, IFI, JIS, BSW, AS, Q, HJ, BS, PEN |
Material verfügbar | Edelstahl Titan und Titanlegierung Aluminium |
Verpackung | Karton+Karton +Palette oder nach Kundenwunsch |
Spezifikation
| Nenndurchmesser | Φ2 | Φ2,2 | Φ2,5 | Φ3 | Φ3,5 | Φ4 | Φ5 | Φ6 | Φ7 | Φ8 | Φ10 | Φ12 | ||
| d | Mindest | 2.1 | 2.3 | 2.6 | 3.1 | 3.6 | 4.1 | 5.1 | 6.1 | 7.1 | 8.1 | 10.2 | 12.2 | |
| Max | 2.4 | 2.6 | 2.9 | 3.4 | 3.9 | 4.4 | 5.4 | 6.5 | 7.5 | 8.5 | 10.7 | 12.7 | ||
| n | Nominell | 0.9 | 1 | 1 | 1.3 | 1.3 | 1.5 | 1.8 | 2.5 | 2.5 | 3 | 3.5 | 4 | |
| Max | 1 | 1.1 | 1.1 | 1.4 | 1.4 | 1.6 | 1.9 | 2.65 | 2.65 | 3.15 | 3.7 | 4.2 | ||
| Mindest | 0.8 | 0.9 | 0.9 | 1.2 | 1.2 | 1.4 | 1.7 | 2.35 | 2.35 | 2.85 | 3.3 | 3.8 | ||
| h | Nominell | 0.5 | 0.6 | 0.6 | 0.8 | 0.8 | 0.9 | 1.2 | 1.6 | 1.6 | 2 | 2.2 | 2.5 | |
| Max | 0.6 | 0.7 | 0.7 | 0.9 | 0.9 | 1 | 1.3 | 1.7 | 1.7 | 2.1 | 2.35 | 2.65 | ||
| Mindest | 0.4 | 0.5 | 0.5 | 0.7 | 0.7 | 0.8 | 1.1 | 1.5 | 1.5 | 1.9 | 2.05 | 2.35 | ||
| H | Mindest | 1 | 1.2 | 1.2 | 1.6 | 1.6 | 1.8 | 2.4 | 3.2 | 3.2 | 4 | 4.4 | 5 | |
| Max | 1.2 | 1.4 | 1.4 | 1.9 | 1.9 | 2.1 | 2.8 | 3.8 | 3.8 | 4.7 | 5.2 | 5.9 | ||
| Tausend Gewichtsstücke (Stahl)≈kg | 0.033 | 0.05 | 0.053 | 0.11 | 0.12 | 0.18 | 0.36 | 0.83 | 0.93 | 1.6 | 2.53 | 3.82 | ||
| Nenndurchmesser | Φ14 | Φ16 | Φ18 | Φ20 | Φ22 | Φ24 | Φ27 | Φ30 | Φ36 | Φ39 | Φ42 | Φ45 | ||
| d | Mindest | 14.2 | 16.2 | 18.2 | 20.2 | 22.5 | 24.5 | 27.5 | 30.5 | 36.5 | 39.5 | 42.5 | 45.5 | |
| Max | 14.7 | 17 | 19 | 21.2 | 23.5 | 25.5 | 28.5 | 31.7 | 37.7 | 40.7 | 43.7 | 46.7 | ||
| n | Nominell | 4.5 | 5 | 5 | 6 | 6 | 7 | 7 | 8 | 10 | 10 | 12 | 12 | |
| Max | 4.7 | 5.2 | 5.2 | 6.2 | 6.2 | 7.25 | 7.25 | 8.25 | 10.25 | 10.25 | 12.25 | 12.25 | ||
| Mindest | 4.3 | 4.8 | 4.8 | 5.8 | 5.8 | 6.75 | 6.75 | 7.75 | 9.75 | 9.75 | 11.75 | 11.75 | ||
| h | Nominell | 3 | 3.5 | 3.5 | 4 | 4 | 5 | 5 | 6 | 6 | 6 | 7 | 7 | |
| Max | 3.15 | 3.7 | 3.7 | 4.2 | 4.2 | 5.2 | 5.2 | 6.2 | 6.2 | 6.2 | 7.25 | 7.25 | ||
| Mindest | 2.85 | 3.3 | 3.3 | 3.8 | 3.8 | 4.8 | 4.8 | 5.8 | 5.8 | 5.8 | 6.75 | 6.75 | ||
| H | Mindest | 6 | 7 | 7 | 8 | 8 | 10 | 10 | 12 | 12 | 12 | 14 | 14 | |
| Max | 7.1 | 8.3 | 8.3 | 9.4 | 9.4 | 11.8 | 11.8 | 14.2 | 14.2 | 14.2 | 16.5 | 16.5 | ||
| Tausend Gewichtsstücke (Stahl)≈kg | 6.01 | 8.91 | 9.73 | 15.2 | 16.5 | 26.2 | 28.7 | 44.3 | 67.3 | 71.7 | 111 | 117 | ||
| Nenndurchmesser | Φ48 | Φ52 | Φ56 | Φ60 | Φ64 | Φ68 | Φ72 | Φ80 | Φ90 | Φ100 | ||
| d | Mindest | 49 | 53 | 57 | 61 | 65 | 69 | 73 | 81 | 91 | 101 | |
| Max | 50.5 | 54.5 | 58.5 | 62.5 | 66.5 | 70.5 | 74.5 | 82.5 | 92.5 | 102.5 | ||
| n | Nominell | 12 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | |
| Max | 12.25 | 14.25 | 14.25 | 14.25 | 14.25 | 14.25 | 14.25 | 14.25 | 14.25 | 14.25 | ||
| Mindest | 11.75 | 13.75 | 13.75 | 13.75 | 13.75 | 13.75 | 13.75 | 13.75 | 13.75 | 13.75 | ||
| h | Nominell | 7 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | |
| Max | 7.25 | 8.25 | 8.25 | 8.25 | 8.25 | 8.25 | 8.25 | 8.25 | 8.25 | 8.25 | ||
| Mindest | 6.75 | 7.75 | 7.75 | 7.75 | 7.75 | 7.75 | 7.75 | 7.75 | 7.75 | 7.75 | ||
| H | Mindest | 14 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 | |
| Max | 16.5 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | 18.9 | ||
| Tausend Gewichtsstücke (Stahl)≈kg | 123 | 182 | 193 | 203 | 218 | 228 | 240 | 262 | 290 | 318 | ||
Material
| 304 Chemische Zusammensetzung (%) | ||||||||
| Grad | C≤ | Mn≤ | Si≤ | S≤ | P≤ | Cr | Ni | N≤ |
| 0.08 | 2 | 0.75 | 0.03 | 0.045 | 18.0-20.0 | 8,0-10,5 | 0.1 | |
| 304 Mechanisches Eigentum | |||
| σb≥ | σ0,2≥ | δ5 (%)≥ | Härte (HB) (kgf/mm2)] |
| 520 (MPa) | 205 (Mpa) | 40 % | ≤187 HRB≤90 HV ≤200HB |
| 316 Chemische Zusammensetzung (%) | ||||||||||
| Grad | C≤ | Mn≤ | Si≤ | S≤ | P≤ | Cr | Ni | Cu | MO | N |
| 0.017 | 0.98 | 0.25 | 0.0016 | 0.0414 | 16.23 | 10.08 | 0.32 | 2.06 | 0.037 | |
| 316 Mechanisches Eigentum | |||
| σb≥ | σ0,2≥ | δ5 (%)≥ | Härte (HB) (kgf/mm2)] |
| 520 (MPa) | 205 (Mpa) | 40 % | ≤187 HRB≤90 HV ≤200 |
